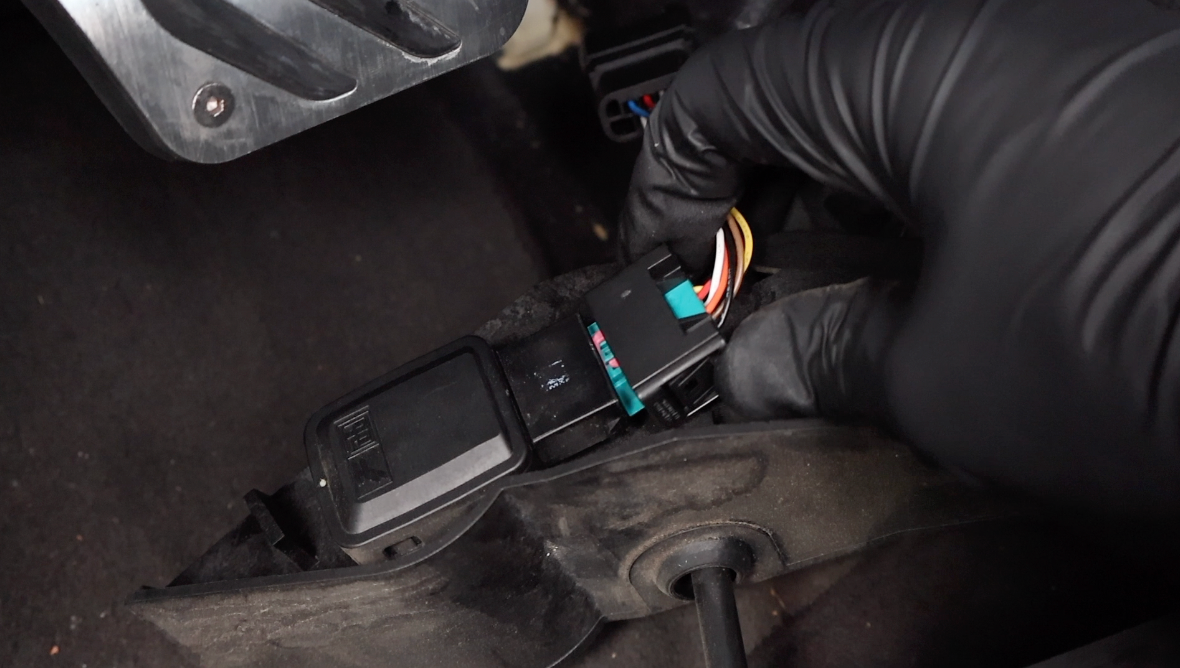

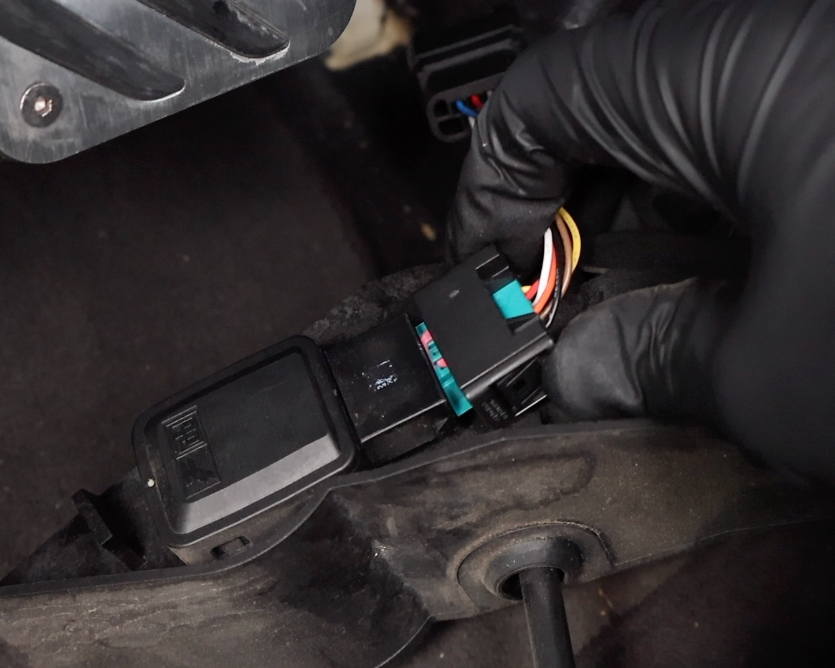

Unplug the electrical connector at the rear of the pedal by depressing the two side mounted clips.

If replacing the entire pedal assembly, simply install new one in the vice versa of removal. If replacing only the sensor, keep reading.

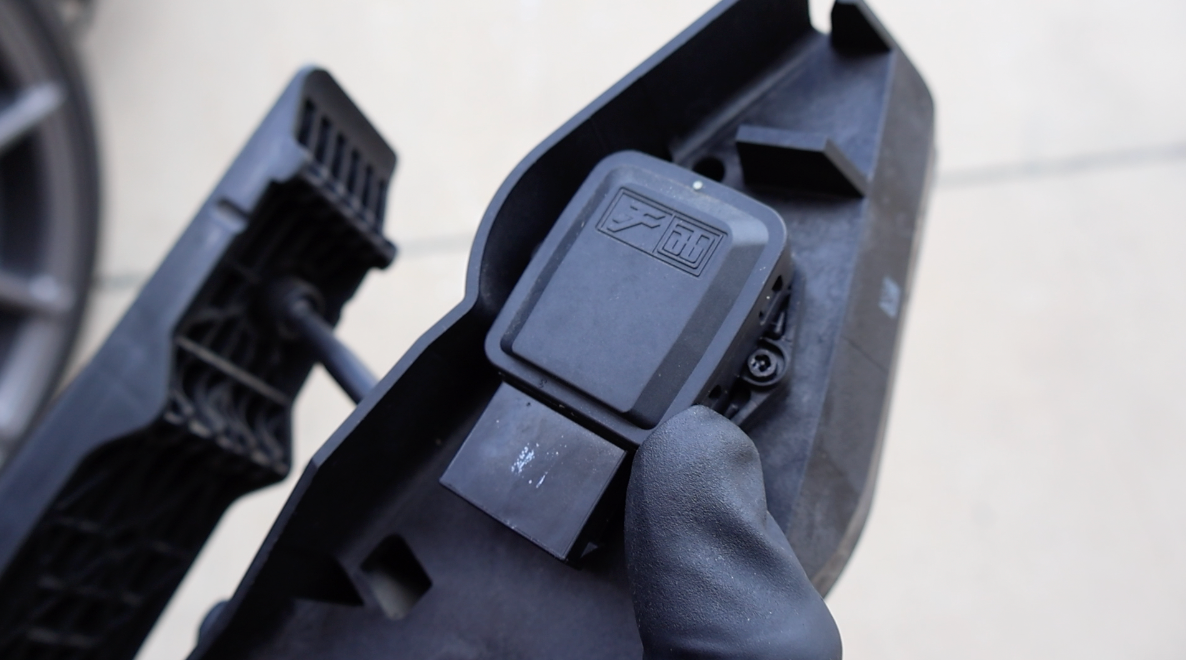

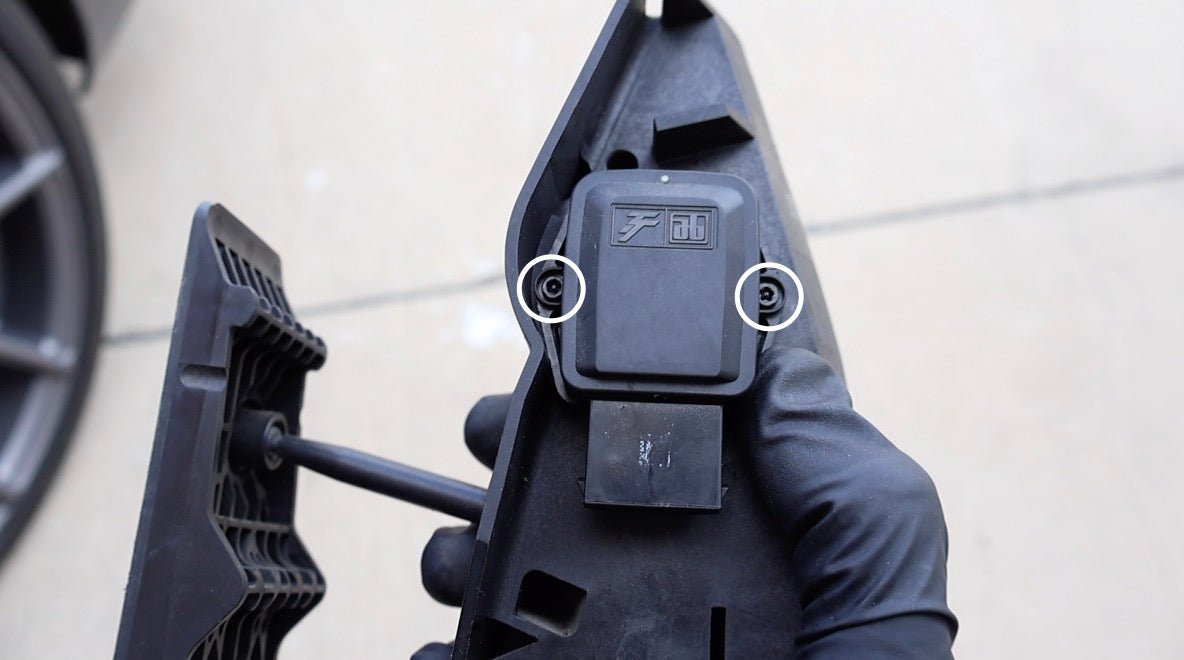

Loosen the 2 Torx screws holding the sensor onto the assembly. Depending on the vehicle trim, sizing may vary, but in most cases this will be a T-5/T-10.

Install new gas pedal sensor in the vice versa of removal.

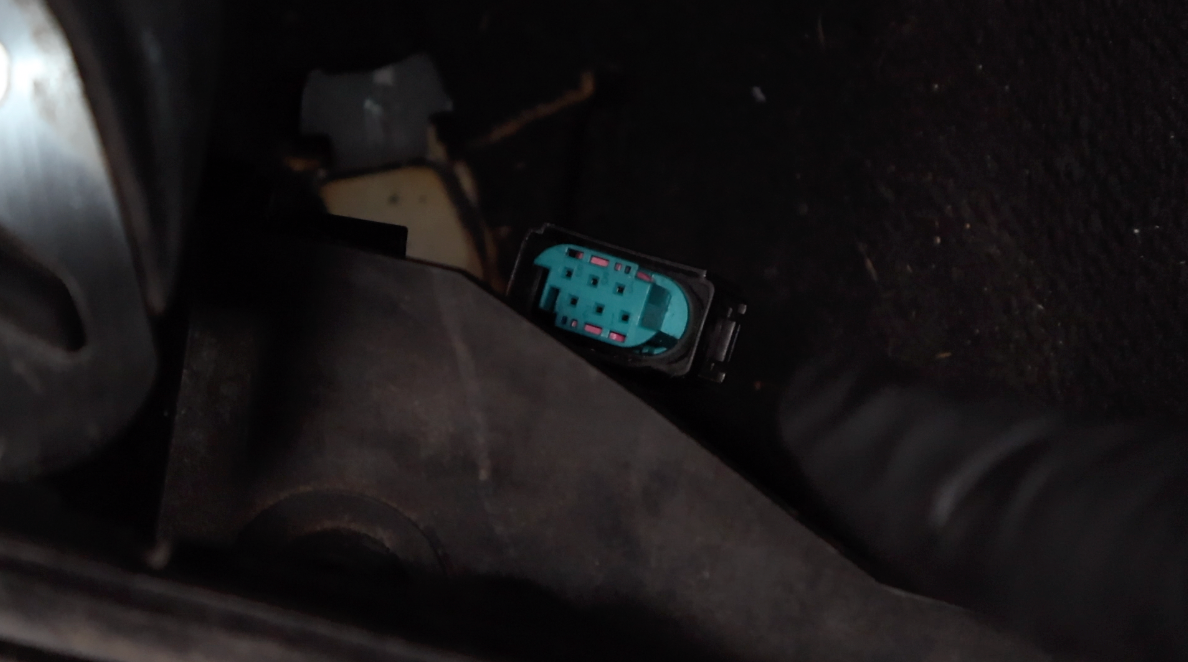

Replug the electrical connector back into the assembly. This connector is symmetrical and can be plugged in any way.

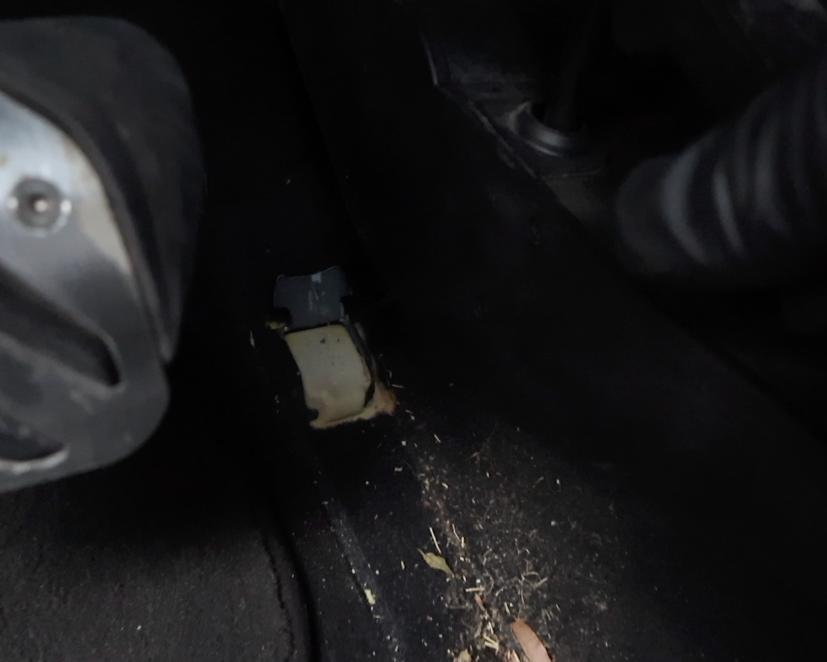

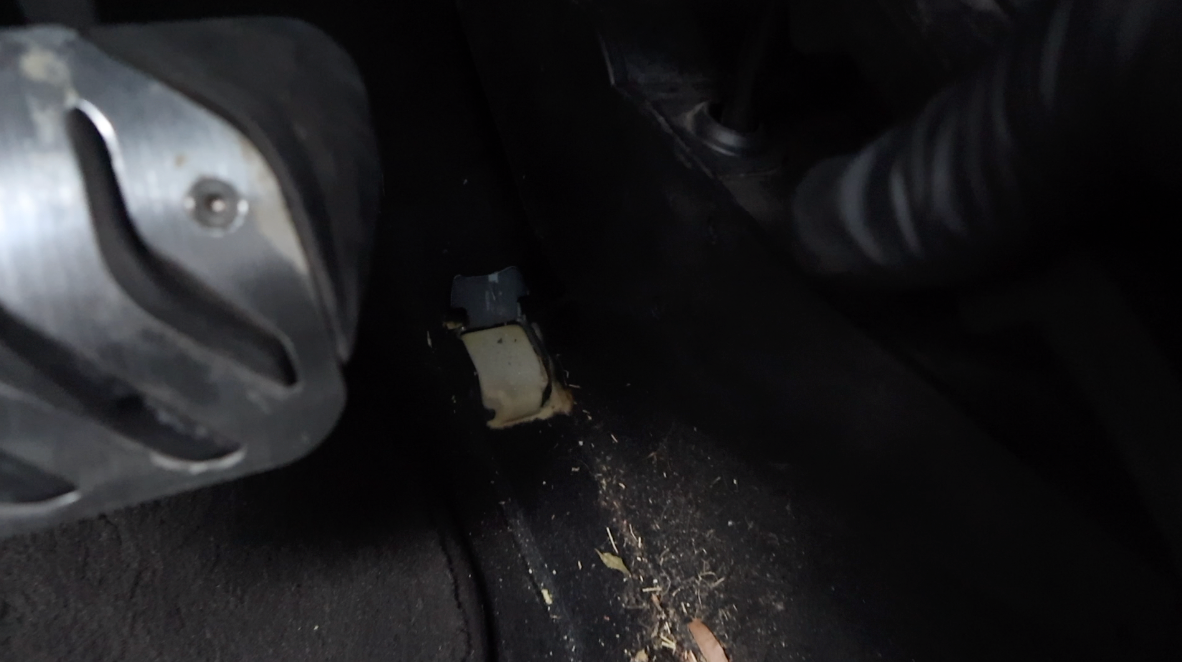

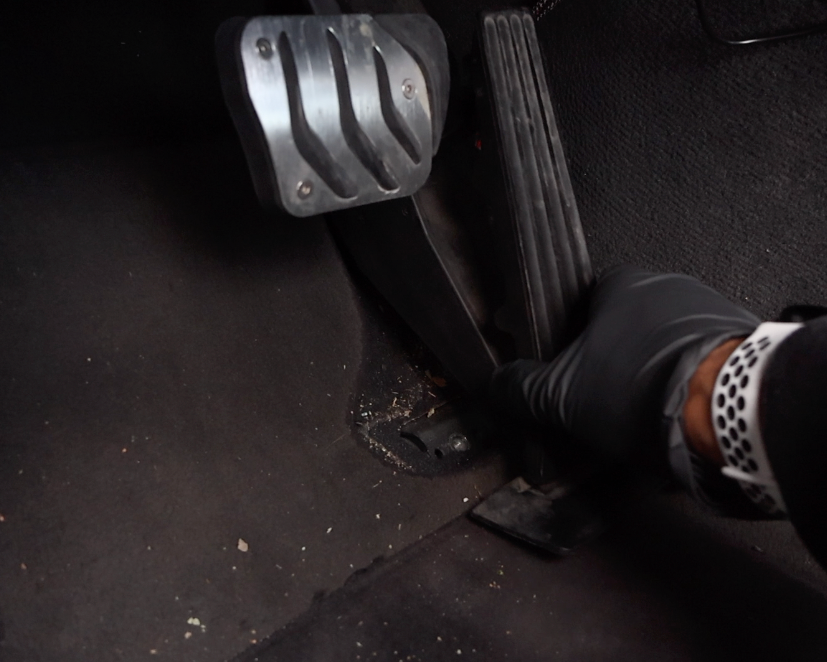

There is a clip located at the rear of the brake pedal. This clip ensures the pedal doesn't move during use. The gas pedal will need to be re-clipped to this.

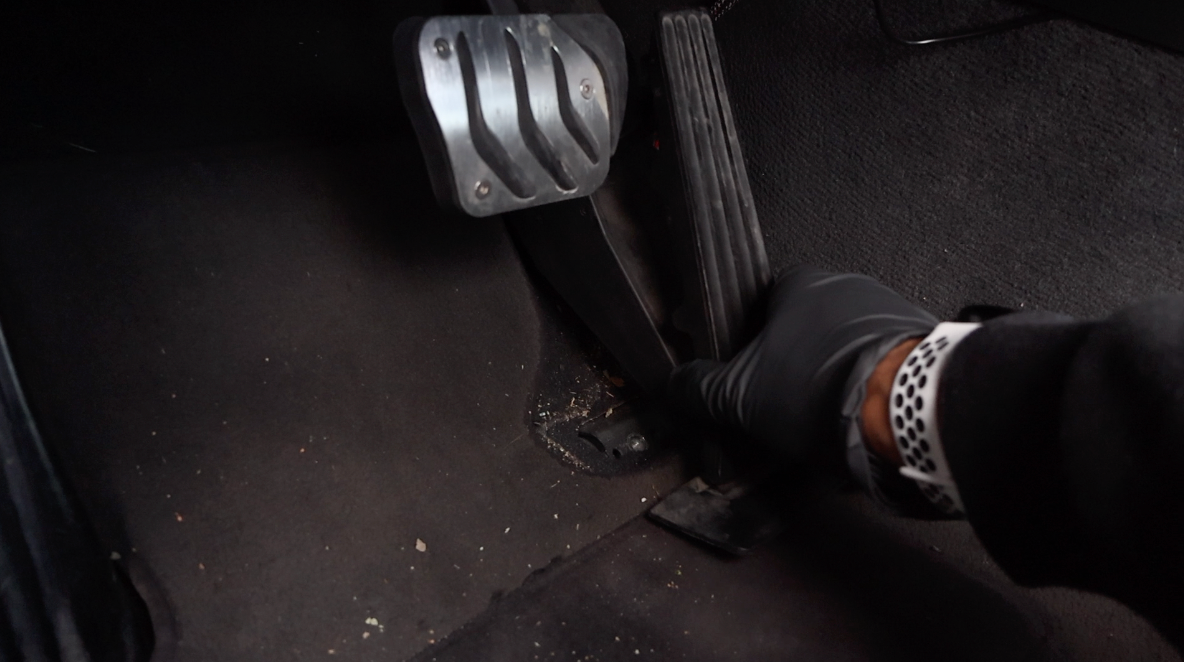

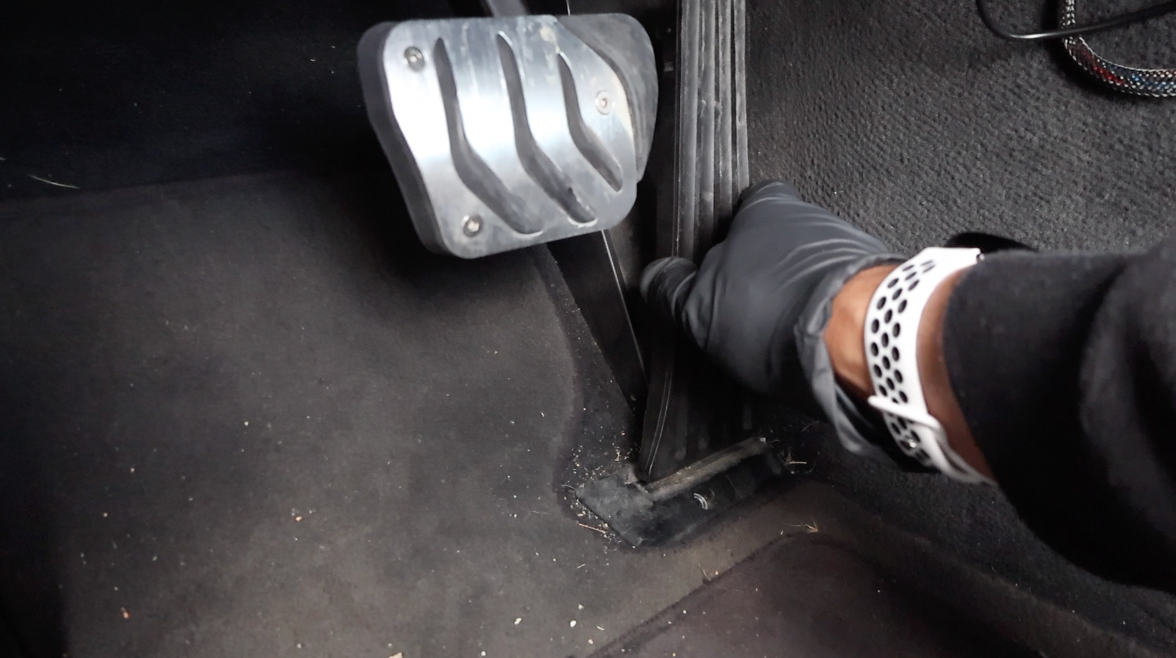

Lift the brake pedal up and secure it onto the clip to reseat the assembly. Once properly installed, the retention bolt will align, and the pedal will sit snugly in place without any side-to-side movement.

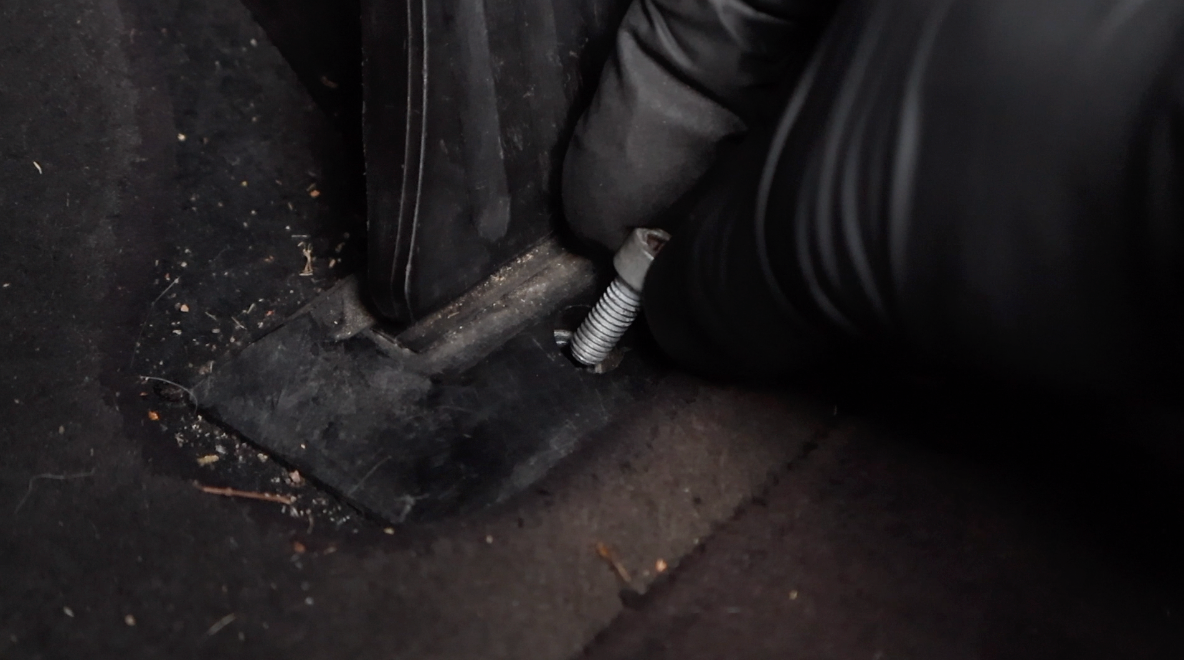

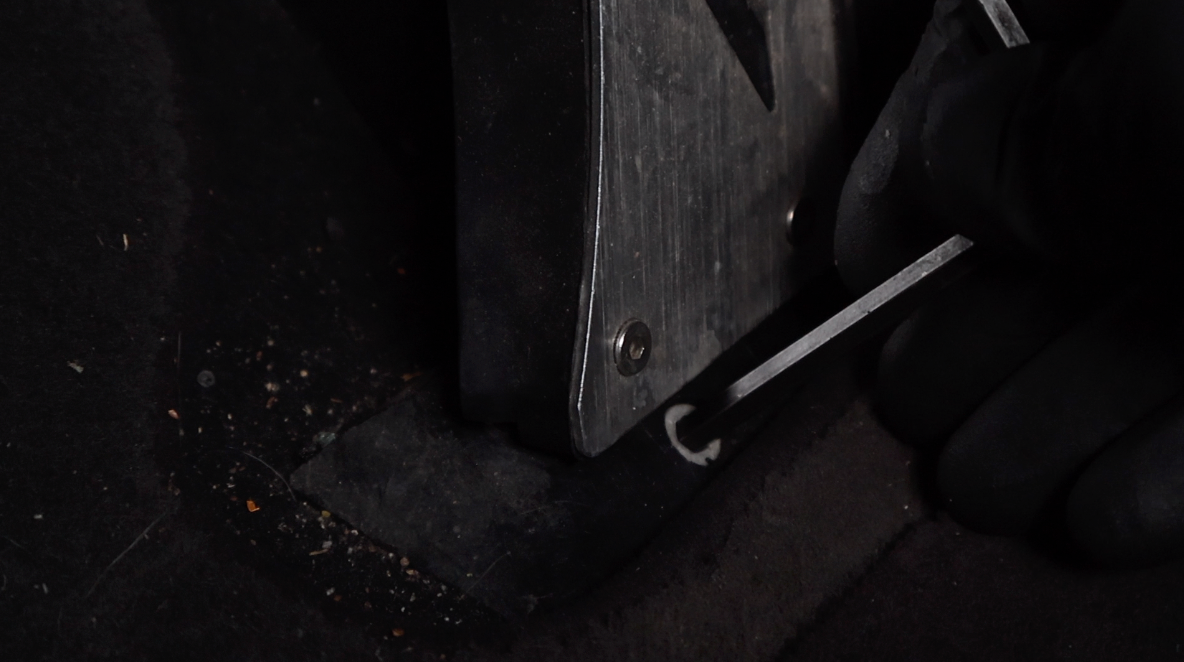

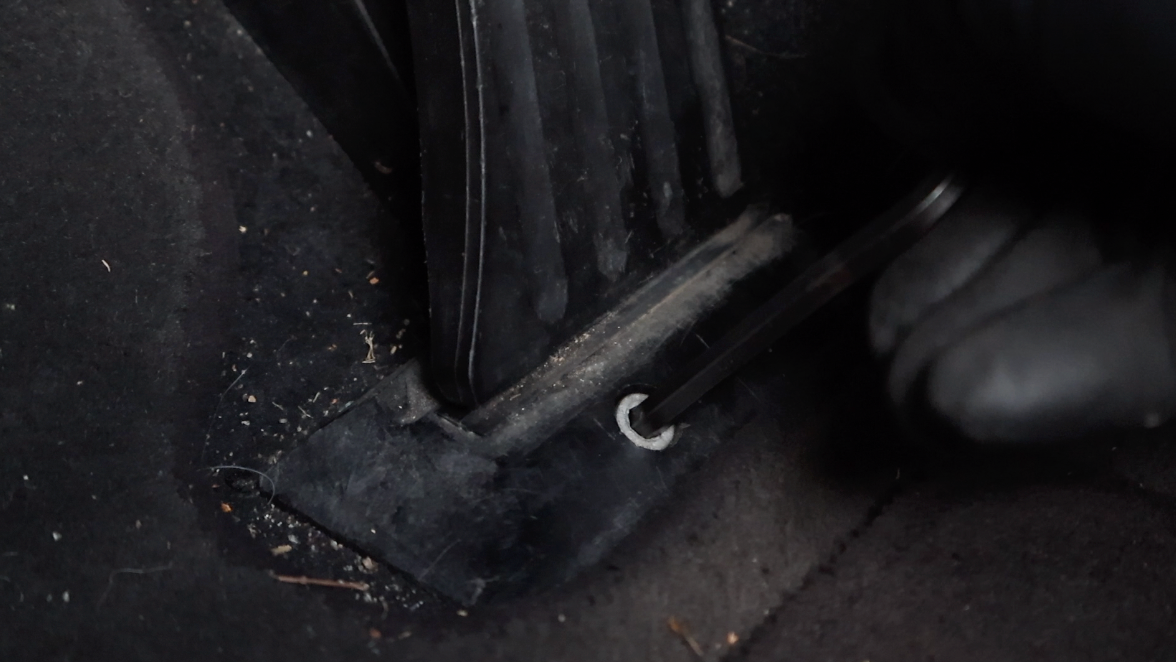

The gas pedal retention bolt is made of aluminum and is on-time-use. It's highly recommended to replace this bolt with a new one.

Part No. 07129904588

Hand-tighten the bolt until it's snug in place. Do not over-tighten as it does not need much torque.

Test start the car to ensure the new gas pedal sensor is functional.

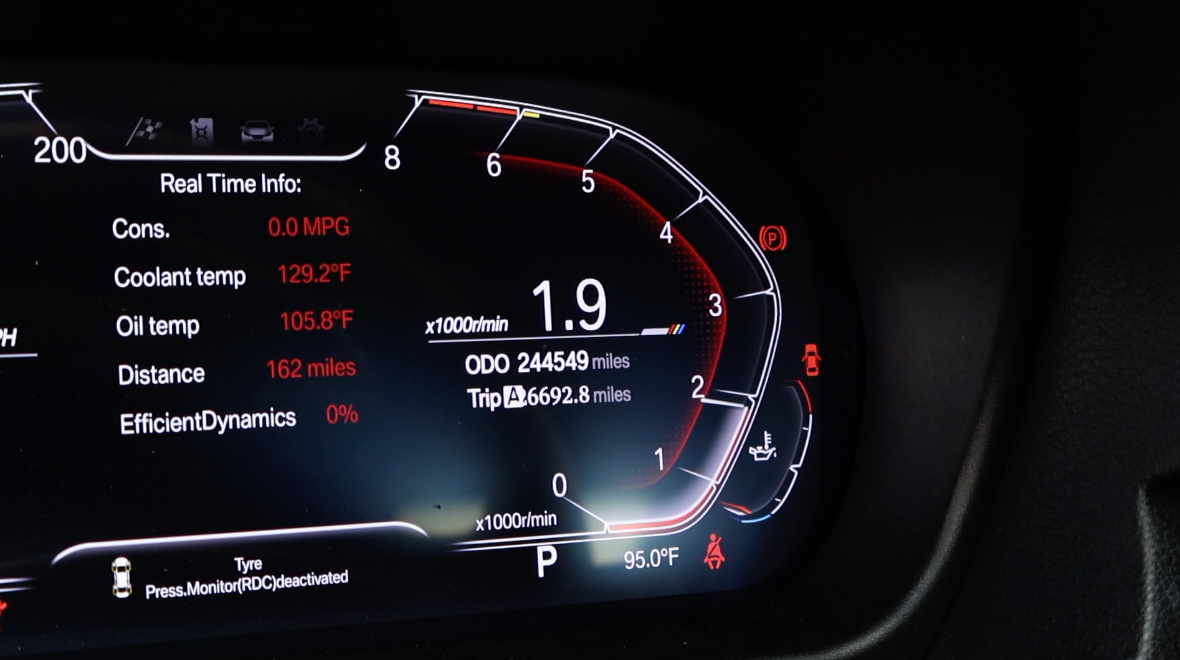

Test the new gas pedal / sensor by turning on the vehicle and revving the engine, taking special note of the responsiveness and any delays.

Good job replacing your gas pedal / sensor! Be sure to clear any engine codes using an OBD2 scanner.
